Viewing Locally saved 360˚ Files on Mac OS

Houston, we have a problem!

For a long time Chrome and Safari browsers, on the Mac, have prevented users from opening a locally saved HTML file. As there are a number of vulnerabilities associated with opening such a file both browsers felt it prudent to block it.

Firefox was the only browser that allowed a locally saved HTML file to be opened. However in a recent published bug list they identified this issue:

CVE-2019-11730:
Same-origin policy treats all files in a directory as having the same-origin


Reporter: Luigi Gubello
Impact: moderate
Description
A vulnerability exists where if a user opens a locally saved HTML file, this file can use file: URIs to access other files in the same directory or sub-directories if the names are known or guessed. The Fetch API can then be used to read the contents of any files stored in these directories and they may uploaded to a server. Luigi Gubello demonstrated that in combination with a popular Android messaging app, if a malicious HTML attachment is sent to a user and they opened that attachment in Firefox, due to that app's predictable pattern for locally-saved file names, it is possible to read attachments the victim received from other correspondents.

In response to this bug report the latest version of Firefox ‘Quantum’ now blocks opening a locally saved HTML file.




What does this mean for us?

Well, for me in my workflow, I often want to open a Pano2VR or krpano tour that I’ve built, and saved locally, without having to load the tour to my Amazon S3 server.

In the pre Quantum versions of Firefox, I could simply drag the index.html/tour.html file into the browser window or right click and select ‘Open in Firefox’ to view the tour. Now I only see partial skins and black screens. (Figures #1 & #2)

Figure #1: Tour view before Quantum update

Figure #2: Tour after Quantum update

So what we need now is a simple method by which we can quickly preview the tours. That means having some way of web serving the files locally.

Note: I don’t have access to a PC to check the status of the browsers there so for now my response is only Mac based.

Apache Web Server

Prior to OS X Mountain Lion the Mac had an easy to access Web Sharing feature running on an Apache web server. The feature provided controls for setting up, using, or disabling Web Sharing and allowed testing of HTML pages prior to moving them to a production web server.

With all subsequent versions of OS X, Apple removed the Web Sharing feature that made sharing a web site or related services a simple point-and-click operation. The Apache web server is still included with the OS, but you can no longer access it from the Mac's user interface. You can, if you wish, use a code editor to manually edit the Apache configuration files, and then use the Terminal application to start and stop Apache.

There are applications such as VirtualHostX that you can purchase, install and use to view HTML files locally. Alternatively you can set up the Apache Web Server using the instructions found here https://discussions.apple.com/docs/DOC-3083

Fortunately the two major Virtual Tour software developers, Pano2VR and krpano, have included localhost Web Servers within their software offerings.

Pano2VR Integrated Server

Pano2VR Integrated web server server showing current Log file

Pano2VR includes a local web server built in to the software. It simulates an active web server so you can view your project locally. You can also simulate slower connections to see how a project might download and play back.

Pro’s:

  • Opens the output project in the default browser

  • Can access the current local host or other devices on the network

  • Option to choose a port or set it to auto

  • Speed Limit for testing connections

  • Web Server Log

  • Can be used to view local files on the device

  • Works with both Pano2VR and krpano tours

  • Can be used to view local files on the device

Con’s:

  • Cannot be used in standalone mode (Pano2VR must be open)

  • Limited configuration options

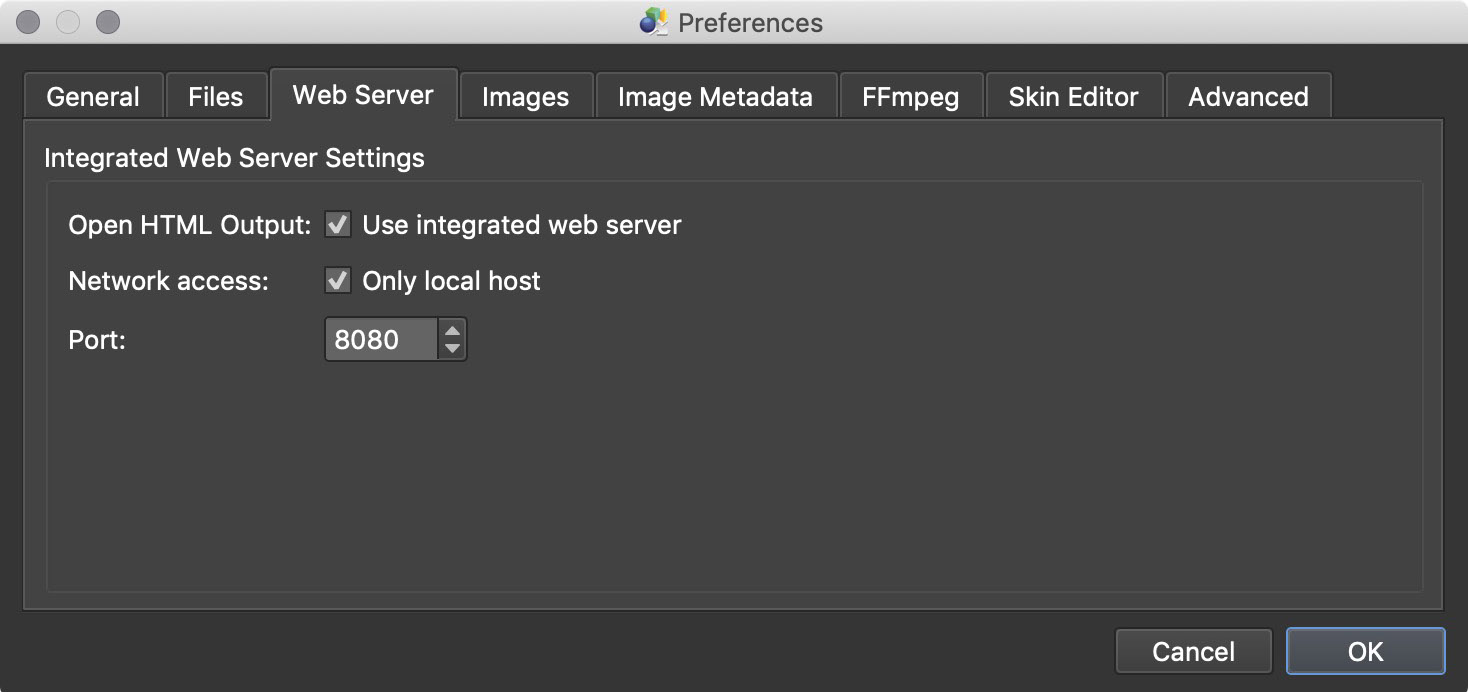

Pano2VR Integrated web server server settings in the Preferences window

Open HTML Output – Selecting this option to enable the integrated web server for testing outputs.

Network access – Keep this selected to ensure that the web server is using the current local host. Deselect this option to allow access to other devices on the network.

Port – Choose your desired port or leave it at auto. The server will use a new port number every time it is restarted or the program is opened. A fixed port number can also be used making it possible to bookmark the page. We suggest using ports 8000 or 8080. For more information on port numbers please see, List of TCP and UDP port numbers.

You can download a trial version of Pano2VR for the Mac, PC or Linux from https://ggnome.com/pano2vr#downloads

For more information on using the Integrated Web Server check out the tutorial video by Martin Hopkins below.

krpano Testing Server

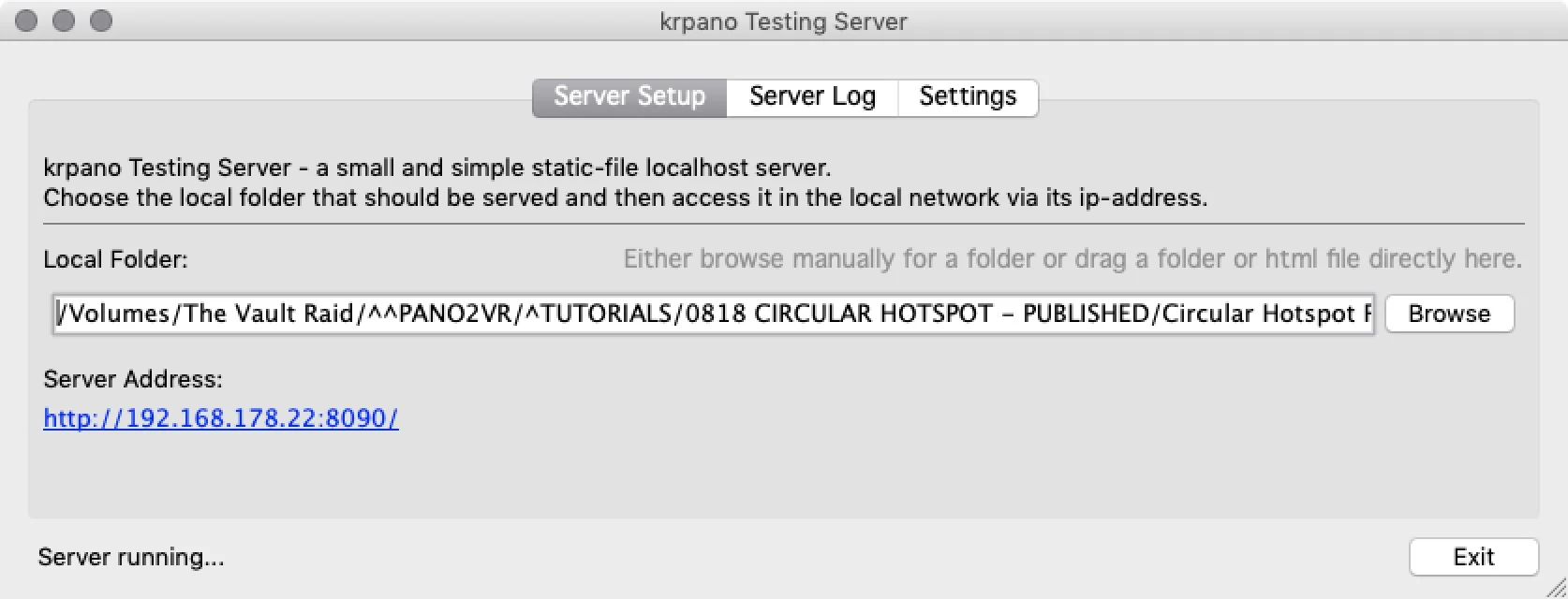

krpano Testing server showing the Server Setup panel

The krpano Testing Server is a small, simple and easy-to-use static-file localhost server. It makes it possible to test krpano HTML5 outputs locally without any local-file restrictions and without uploading. Other computers and devices in the local network will be able to view the files. Additionally it's possible to control the browser caching and to limit the download-speed to simulate and test slower Internet-connections.

Pro’s:

  • Standalone App (does not require a license)

  • Opens the built project in the default browser

  • Can access the current local host or other devices on the network

  • Option to choose a Default Server port

  • Download-speed simulation

  • Common download presets

  • Optional send No-Caching headers to avoid browser-side caching

  • Option to send CORS Header

  • Web Server Log

  • Can be used to view local files on the device

  • Works with both Pano2VR and krpano tours

Con’s: None to mention

krpano Testing server showing the Server Log panel

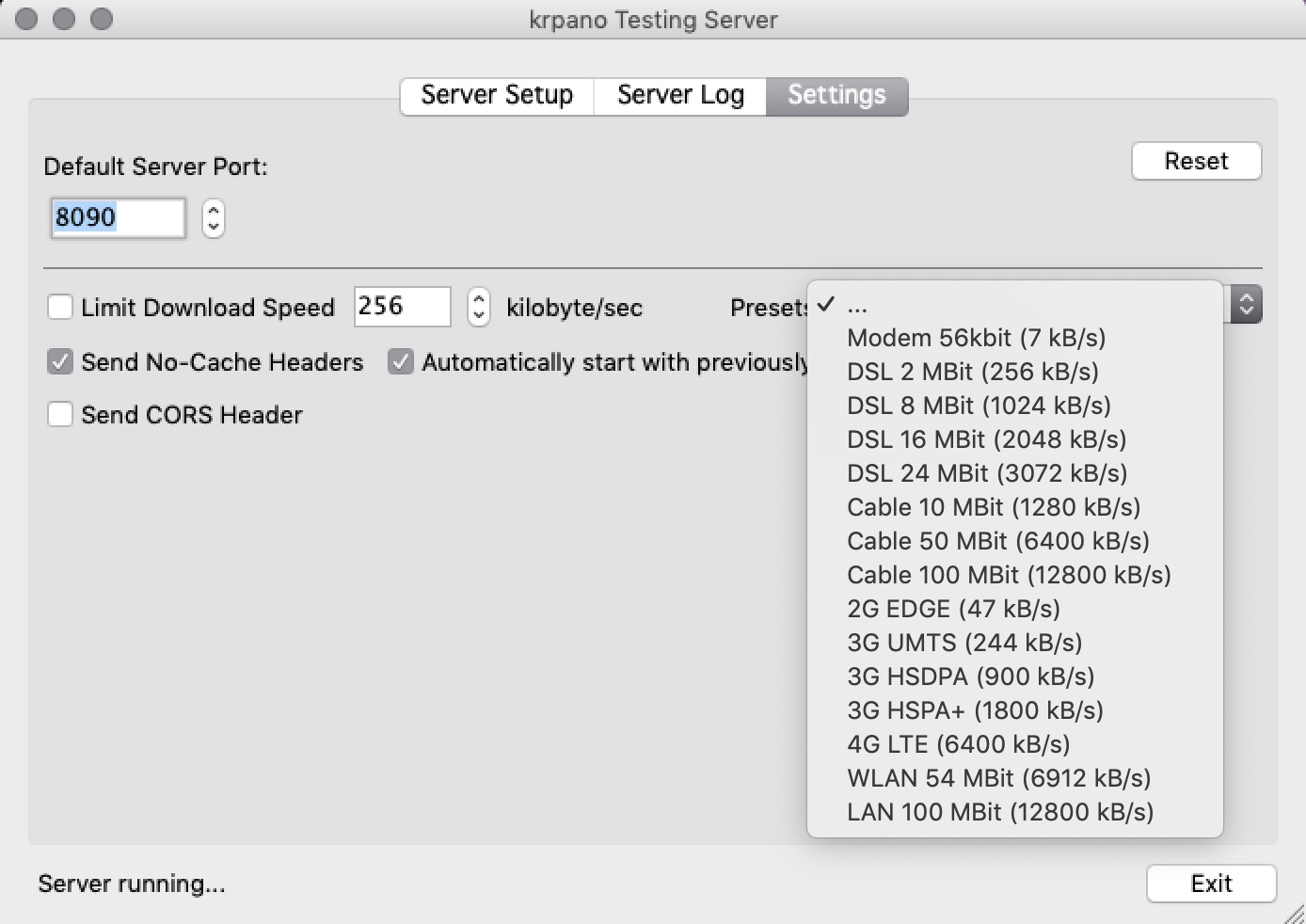

krpano Testing server showing the Settings panel

You can download the Mac or PC version from https://krpano.com/download/

GGPKG Viewer

Pano2VR describe the Garden Gnome Package Viewer as a native application that lets you open Pano2VR and Object2VR packages (.ggpkg) for viewing content offline. However it goes beyond that and allows you to open and view tours produced in both Pano2VR and krpano.

Pro’s:

  • Standalone App (does not require a license)

  • Drag and Drop or Browse to file

  • Can be used to view local files on the device

  • Works with both Pano2VR and krpano tours

  • Options for Full Screen View and Kiosk Mode (Mac)

Con’s:

  • No configuration options to change speeds

Pano2VR tour

krpano tour

You can download the Mac or PC version from https://ggnome.com/ggpkgviewer

For more information on using the GGPKG check out the tutorial video by Martin Hopkins below.

Over the coming days I’ll be developing individual tutorials for the options above. I’ll post in Facebook and on the forums when the tutorials are live.

Summary
