Overview
The hotspot textbox is a built-in tooltip or information display that appears when a user hovers their mouse over a polygon hotspot. This built-in textbox primarily displays the Title of the polygon hotspot as a tooltip when hovered over.
However styling is quite limited only allowing the following styling;
Visibility: Whether it's visible at all.
Background Color: The fill color of the text box.
Border Color: The color of the box's border.
Radius: To round the corners of the box.
Size: Whether it's auto-sized or has a fixed size.
Text Color: The color of the text (the hotspot's Title and Description).
Word Wrap: If the text should wrap.
This “Little Bits” tutorial will show you how to create Font Styles for Polygon Hotspot Textbox by;
Adding CSS code to a Draw Code Element
Note: this tutorial was built in Pano2VR Tour Builder Version: 7.1.1. You can download the software here. As “Little Bits” tutorials don’t go into detail about Pano2VR operations a working knowledge of Pano2VR is an advantage
Note: click on any image in the tutorial to enlarge it
Final Output
Tutorial Folder
The tutorial folder, ‘Polygons-Change-Font’ contains the following:
green-grid.jpg file,
a Pano2VR project 'hotspot-font-styles.p2vr'
a skin 'hotspot-font-styles.ggsk' and
a font folder ‘skranji-v13-latin’ with two fonts variations (Figure #1)
Figure #1. Polygons-Change-Font Tutorial Folder
Getting Started
1. Download the zipped tutorial folder here
2. Unzip the tutorial folder
3. Open the ‘hotspot-font-styles.p2vr’ (Figure #2)

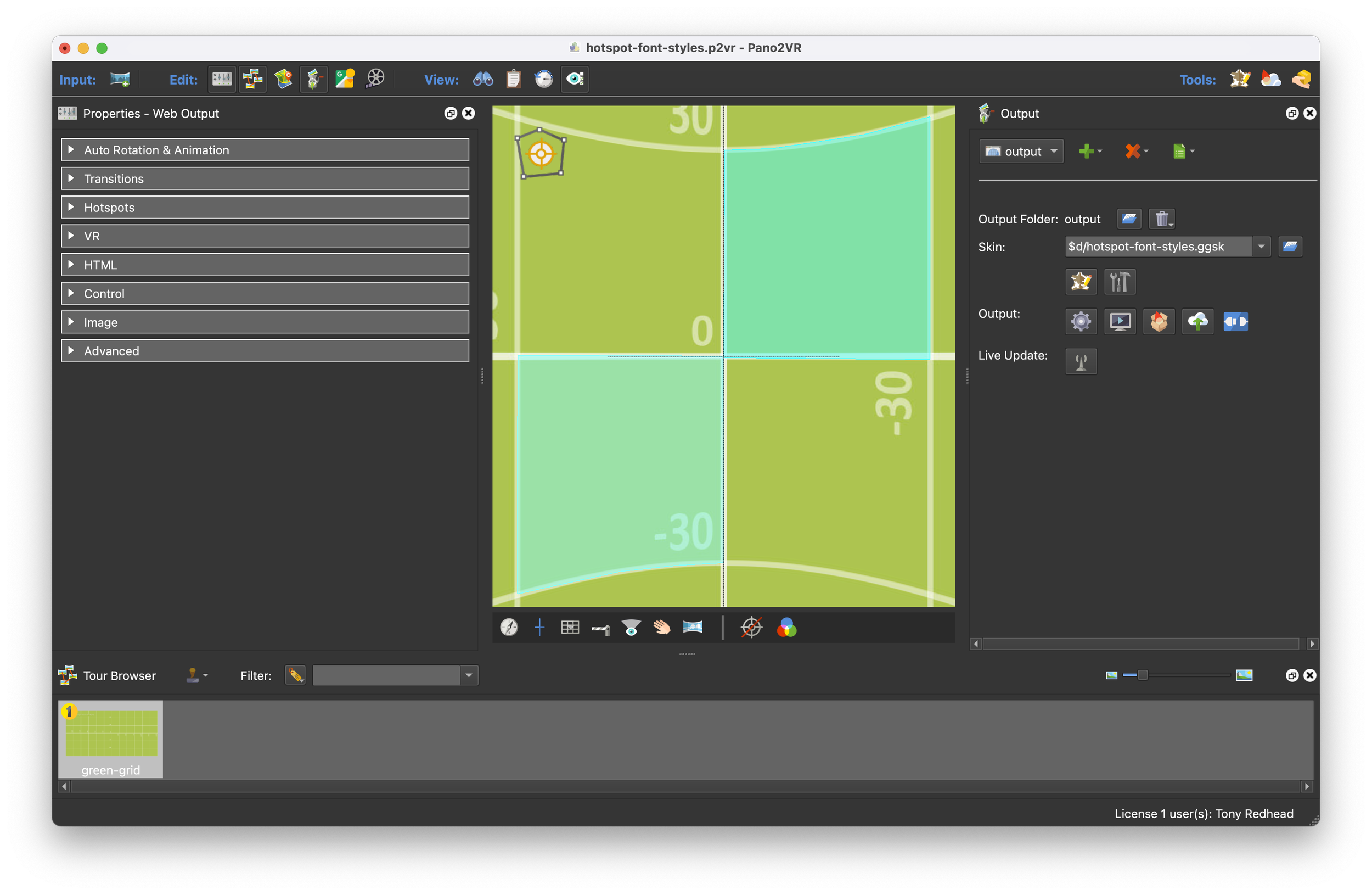

Figure #2: Project Window
4. Output the project (Figure #3)
The output should be the same as the sample below and when you mouse over the polygons you will see the default Textboxes
Figure #3: Output
Note: You can view the live tour below
6. Open the Skin Editor (Figure #4)
In the skin, the Tree contains two Code Elements placed in the bottom right corner of the Canvas.
Note: both are set to permeable so as to not interfer with any mouse movement in that area.
Figure #4: Skin Editor
7. Click on the ‘Font’ element in the tree
8. In the Properties panel, click on the Code Element dropdown arrow to reveal the settings (Figure #5)
Note: these are the fonts we will use in the styled textboxes. No changes are required to the Fonts element.
Figure #5: Fonts element and Code Element properties
9. Click on the ‘Hotspot_text’ element in the tree
10. In the Properties panel, click on the Code Element dropdown arrow to reveal the settings (Figure #6)
Note: the code element properties are empty, we will set them in the next step.
Figure #6: Hotspot_text element and Code Element properties
11. Click on the ‘Open Editor’ button next to the Code: text field to open the “Enter Value” window (Figure #7)

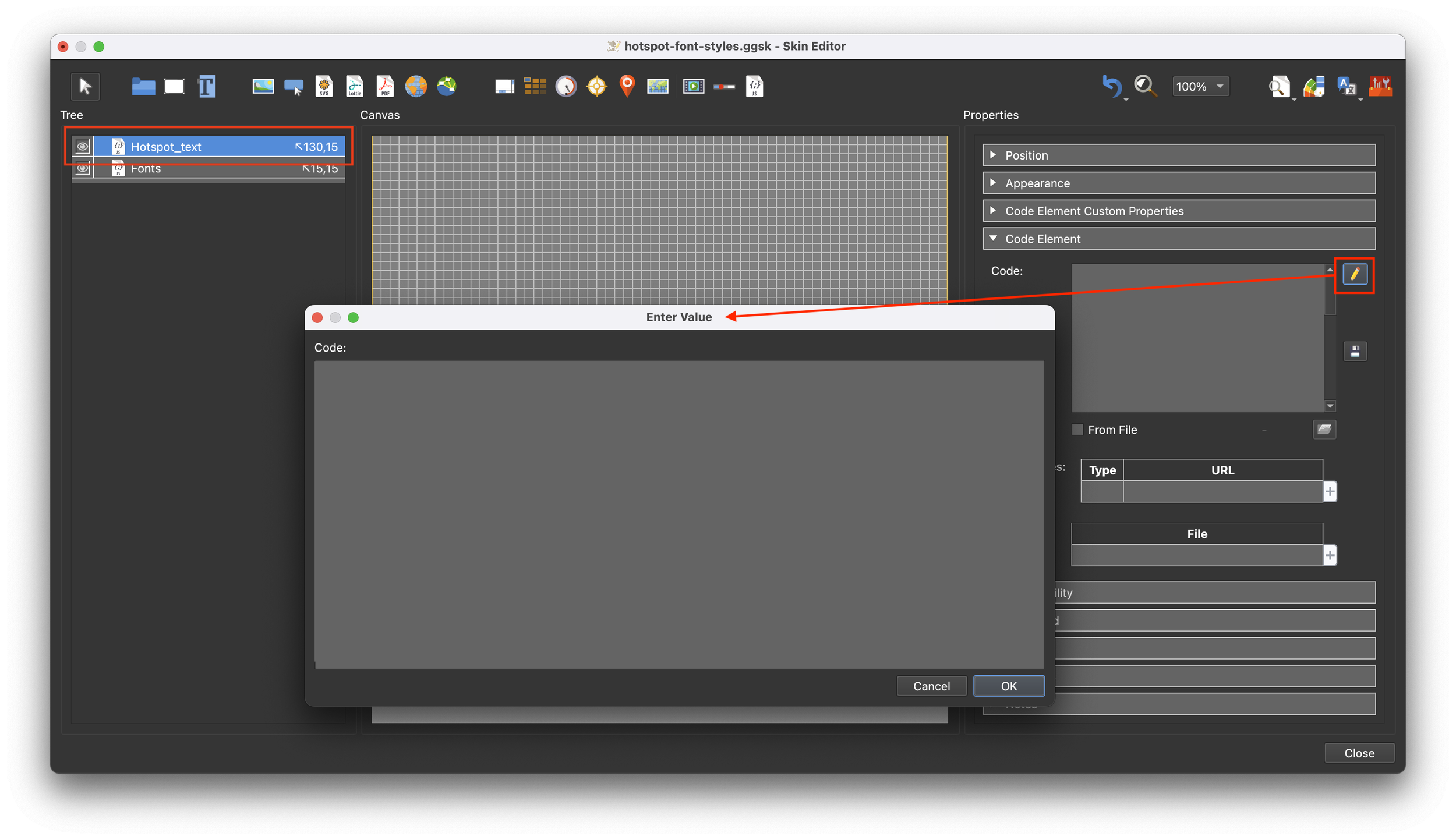

Figure #7: Edit Value window
12. Copy the code below
/*!
<style>
/* This targets the hotspottext element by its ID. */
/* It will apply your desired font and now the color to the hotspot label text. */
#hotspottext {
font-family: "Skranji", sans-serif; /* Your desired font */
font-size: 24px; /* Your desired font size */
color: white !important; /* Force this color to override any inline styles */
border: 2px dashed white !important; /* Example border: 2px solid blue */
border-radius: 8px !important; /* Example border-radius: 8px for rounded corners */
background-color: rgba(0, 0, 255, 0.3) !important; /* Transparent blue background */
padding: 5px !important; /* Add some padding so text doesn't touch the border */
width: 200px !important; /* Example fixed width. Use with caution! */
height: 60px !important; /* Example fixed height. Use with caution! */
text-align: center !important;
line-height: 65px !important; /* For vertical centering with fixed height */
box-shadow: 0 8px 16px 0 rgba(0,0,0,0.2), 0 6px 20px 0 rgba(0,0,0,0.19) !important;
}
</style>
*/13. Paste it into the ‘Enter Value’ window (Figure #8)

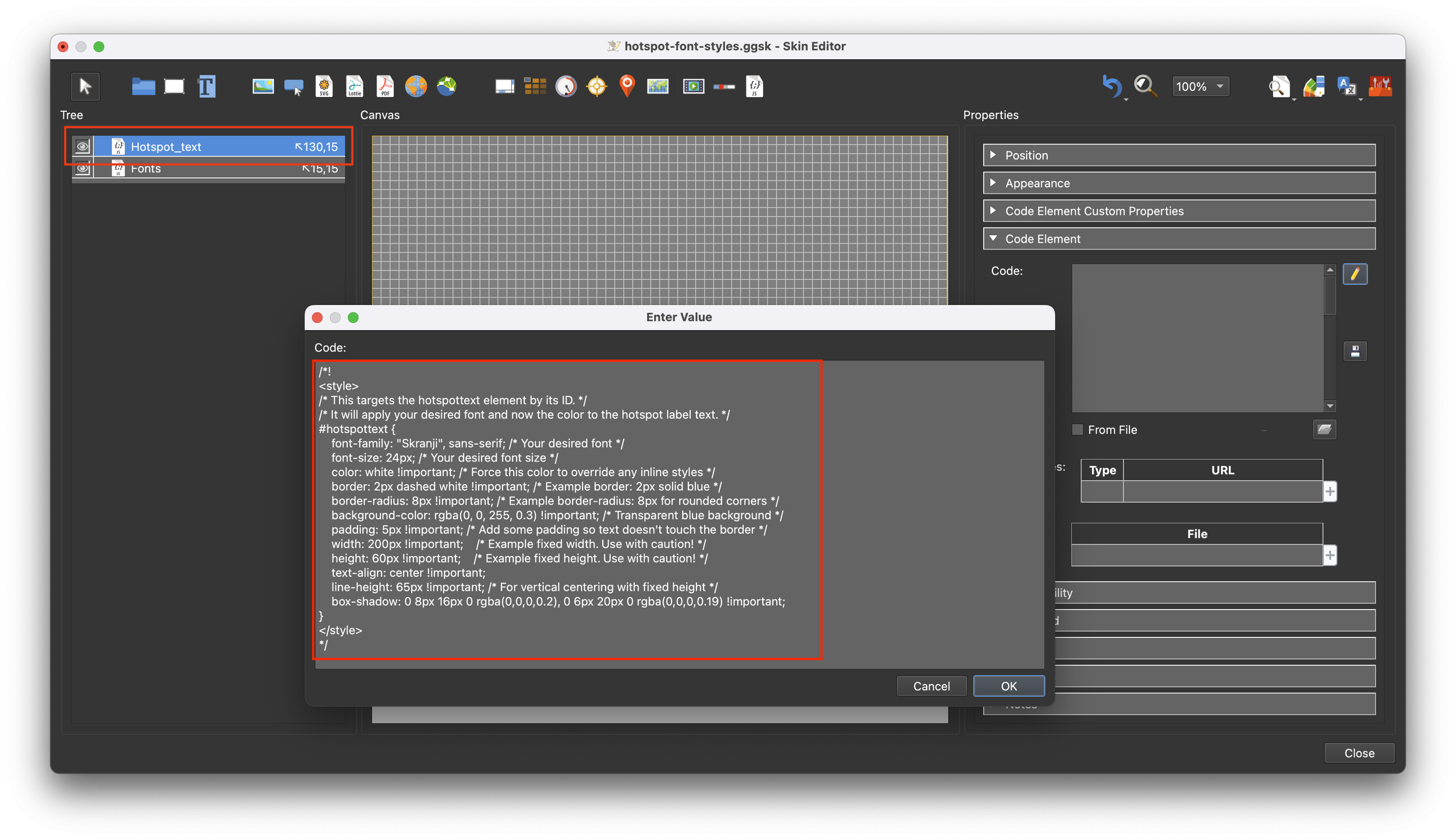

Figure #8: Code pasted in the Enter Value window
14. Click on the ‘OK’ button to add the code (Figure #9)
Note: if you simply close the window using the system buttons you will loose the code
Figure #9: Code added to skin
15. Close and save the skin
16. Republish the project
Now when you mouse over the Polygon Hotspots the new text will be displayed
Summary
